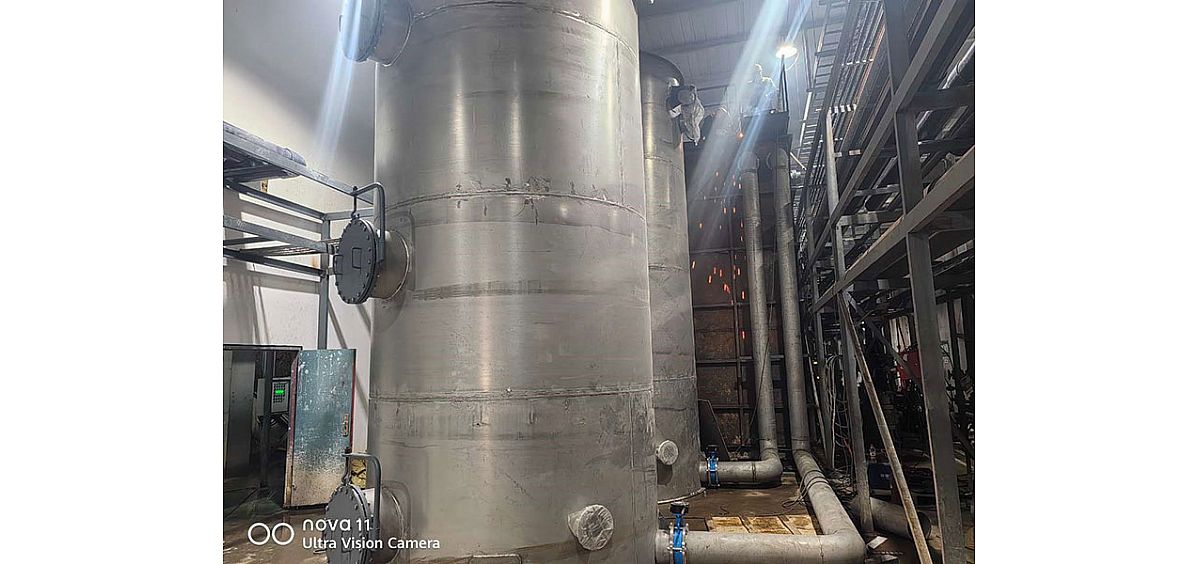

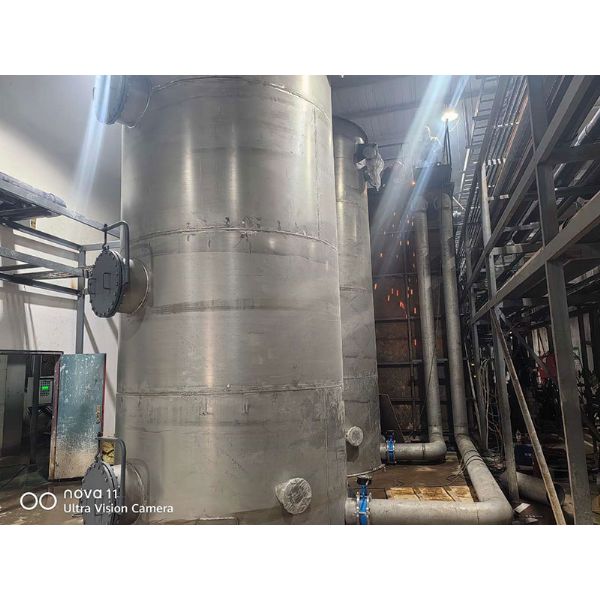

برج أكسدة الأوزون المتكامل XNO3


يعتمد مبدأ عمل برج الأكسدة الحفزية للأوزون على خصائص الأكسدة القوية لجزيء الأوزون (O3). عندما يمر غاز الأوزون عبر مياه الصرف الصحي المعالجة في وجود محفز الأوزون SAO3، فإنه يتفاعل مع جزيئات الملوثات ويؤكسدها إلى مواد غير ضارة، مثل ثاني أكسيد الكربون (CO2) والماء (H2O) والغازات أو المواد غير الضارة الأخرى، وبالتالي تحقيق انخفاض في COD مياه الصرف الصحي.
استفسارات الجملة

معلومات المنتج

Features:

  1. The system is stable and efficient, with an ozone concentration of 0.5-10kg/h;
  2. Container assembly system can be multi-level free series/parallel assembly, convenient for overseas transportation;
  3. strong adaptation and stability;
  4. Equipment service life is more than five years;
  5. The system is easy to lose low. It comes with a year of consumables and a wearing parts configuration, eliminating the trouble of hard-to-buy parts.

Application scope:

  1. Wastewater treatment system pre-treatment process section;
  2. Wastewater depth treatment process section;
  3. Tail water decolorization process section;
  4. Thick water organic matter treatment process section;
  5. Aerobic aeration system.
1 The rated ozone output of a single ozone generator 0.5-10kgO3/h
2 Rated ozone concentration 25-30mg/L
3 Ozone flow rate 267-320Nm3/h
4 Ozone production adjustment range Linear Regulation
5 Unit ozone power consumption (cooling water not higher than 25℃ ) 16kWh/kgO3
6 Dimensions mm Approximate size of the generating room: 3400*1380*2250 Power cabinet: 3600*800*2120
7 Input Power 380V/50Hz/3ph
8 Cooling water volume per unit Inlet temperature ≤30℃
flow 32m3/hr
Outlet temperature rise 3-4℃
9 Ozone outlet pressure 0.095MPa ( G )
10 Tracheal interface DN50
11 Water pipe interface DN100
12 Desalinated water filling volume About 1.0 ton/unit (provided by the buyer)
